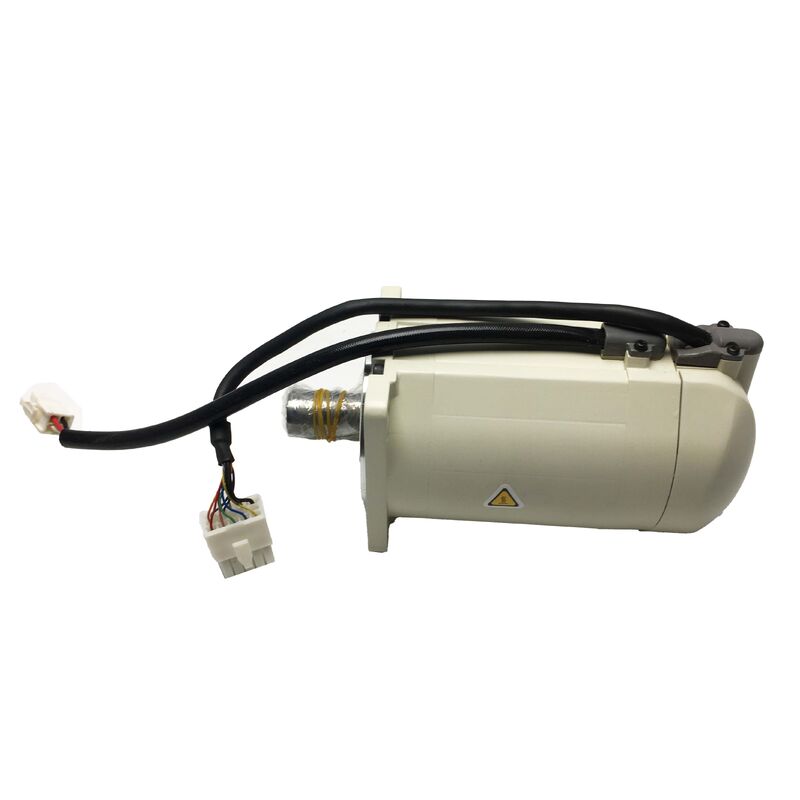

MSM082A1A PANASONIC AC Servo Motor MSM082A1A New Factory Sealed

Panasonic MSM082A1A | AC Servo Motor — 750W, 200V, 3000rpm, 2.39N·m, 2500 ppr Incremental Encoder, Round Shaft, IP65

Overview

The Panasonic MSM082A1A is a 750W low-inertia AC servo motor from Panasonic's MSM series, rated at 200V and 3,000rpm with a continuous torque of 2.39 N·m. It pairs with Panasonic's MINAS series servo drivers and is designed for the precision motion control demands of CNC machine tools, packaging lines, assembly equipment, and factory automation systems where compact, high-response drive performance is required.

The MSM series targets applications where low rotor inertia is the priority — machines that require rapid acceleration and deceleration cycles, tight velocity regulation, and precise positioning on relatively light mechanical loads.

At 750W with a peak torque of approximately three times the rated continuous value, the MSM082A1A handles the short bursts of current demand that occur during acceleration without reaching thermal limits, as long as the duty cycle keeps the RMS torque within the rated 2.39 N·m continuous rating.

The 2,500 ppr incremental encoder mounted on the rear of the motor provides quadrature A/B phase and Z index pulse feedback to the servo driver.

At 3,000 rpm rated speed, this encoder generates 7,500 index pulses per second and approximately 2.5 million A/B edge counts per second — sufficient update density for the servo driver's velocity and position control loops in most CNC and automation applications.

The incremental feedback type means the machine's CNC or motion controller requires a reference return (zero return) cycle at power-up to re-establish the axis's absolute position reference before production begins.

With IP65 protection, the MSM082A1A resists dust and directed water jets from any angle, making it suitable for machine tool environments where coolant mist, swarf-laden air, and periodic cleaning with water or compressed air are part of normal operation.

The round shaft configuration without keyway provides clean coupling to timing belts, couplings, and pulleys where a smooth cylindrical mating surface is preferred.

Key Specifications

Low-Inertia Design — Dynamic Response in Practice

The fundamental advantage of the MSM series' low-inertia design is response speed. Servo motor rotor inertia directly determines how quickly the motor accelerates and decelerates — a lower inertia rotor requires less torque to change speed, which means faster velocity response and shorter settling time at the target position.

For packaging equipment producing hundreds of packs per minute, or for CNC axis drives performing rapid tool changes and point-to-point movements between machining operations, reduced acceleration and deceleration time directly translates to higher machine throughput.

The tradeoff with low-inertia motors is sensitivity to mechanical resonance: when the load inertia is much larger than the rotor inertia, the servo gain settings that produce fast response may also excite resonance in the mechanical transmission.

Panasonic's compatible MINAS servo drivers address this through auto-gain tuning and notch filtering, which identify and suppress mechanical resonance frequencies in the drive train without requiring manual gain tuning by the commissioning engineer.

Encoder Feedback and Control System Requirements

The MSM082A1A's 2,500 ppr incremental encoder is an older-generation feedback specification compared to the 17-bit (131,072 count) and 20-bit (1,048,576 count) absolute encoders found on current MINAS A5 and A6 family motors.

This does not limit the motor's mechanical performance, but it does limit the fine position feedback density available to the servo driver.

For CNC applications requiring sub-micron positioning resolution or very smooth low-speed operation, the 2,500 ppr encoder is typically used with a quadrature decoder that interpolates the 2,500 ppr signal to a higher effective resolution within the driver.

The incremental encoder type also means the system has no absolute position memory at power-up.

After every machine power cycle, the controller must perform a reference return — a standard startup procedure for machines of this generation — before tool offsets and workpiece coordinate systems become valid.

This is normal behaviour for machines equipped with incremental-encoder servo motors and does not indicate a motor or system fault.

IP65 Environmental Protection

The IP65 rating on the MSM082A1A specifies complete protection against contact with internal components (6 = dust-tight) and protection against low-pressure water jets from all directions (5 = water jet).

For a machine tool servo motor, this covers the most common environmental hazards: water-soluble coolant mist from machining operations, cutting fluid spray during workpiece loading/unloading, and coolant residue from cleaning the machine table.

The motor's shaft seal and housing construction maintain this protection at the standard conditions of machine tool operation.

It is important to note that IP65 does not cover immersion — the motor should not be submerged or subjected to sustained high-pressure water cleaning, which would exceed the IP65 test conditions.

For environments requiring immersion or sustained high-pressure wash-down protection, IP67 or IP67-rated motors from the compatible Panasonic MSM/MSMD IP67 variants would be the appropriate specification.

Compatible Panasonic Servo Drivers

The MSM082A1A is designed for use with Panasonic's MINAS series servo drivers. For the 750W motor at 200V, the compatible driver frame is Panasonic's MCDH-series driver (single/3-phase 200V, 750W rated).

The driver and motor combination requires a matching encoder cable, motor power cable, and in most installations, a brake resistor if the application involves frequent high-inertia deceleration cycles.

Panasonic's PANATERM setup software is recommended for parameter setting, real-time monitoring, and gain adjustment during commissioning.

FAQ

Q1: Does the MSM082A1A require a separate power supply for the encoder?

No. The encoder's power supply is provided through the motor's encoder feedback cable from the servo driver.

The driver generates the encoder supply voltage (typically 5V DC) internally and delivers it through the designated encoder connector pins.

No separate encoder power supply is required or should be connected. The motor has two cable connections: the power cable (U, V, W motor phases plus ground) and the encoder cable (all encoder signals and encoder supply).

Q2: Can the MSM082A1A be used with servo drivers from other manufacturers?

The MSM082A1A is designed for Panasonic MINAS series servo drivers and uses Panasonic's proprietary encoder cable connector and signal protocol. Using it with non-Panasonic servo drivers requires: a compatible 2,500 ppr incremental encoder input on the driver (A/B/Z differential signals), an adapter from the Panasonic encoder connector to the driver's encoder connector, and motor parameters (rated current, rated torque constant, inertia) entered manually into the third-party driver.

This is technically possible but requires careful parameter matching and is not a plug-and-play substitution — confirm compatibility with the third-party driver manufacturer before proceeding.

Q3: What is the significance of "no keyway" on the round shaft, and how is the load coupled?

A round shaft without a keyway is a smooth cylindrical shaft. Load coupling is achieved through friction — a timing belt pulley, coupling hub, or gear is clamped to the shaft using the friction force from the hub's clamping bolts or a separate clamping ring.

This mounting method distributes the torque load uniformly around the shaft circumference rather than concentrating it at a keyway, and it allows the pulley or coupling to be positioned anywhere along the shaft's usable length rather than being constrained by a fixed keyway position.

For most coupling styles used in servo systems (jaw couplings, disc couplings, timing pulleys), round shaft mounting is entirely standard and does not limit torque transmission within the motor's rated torque range.

Q4: What maintenance schedule is recommended for the MSM082A1A?

Panasonic recommends annual inspection of mounting fastener torque and encoder cable connector seating for motors in continuous production service.

Bearing service life depends on radial and axial loading — motors operating near their maximum speed with significant belt tension on the shaft may require bearing inspection more frequently than lightly loaded motors.

The motor windings themselves are maintenance-free; motor replacement or winding repair is warranted if insulation resistance to frame falls below acceptable levels during periodic insulation testing.

The encoder has no user-serviceable components; if encoder communication faults develop that are not resolved by cable and connector inspection, encoder or motor replacement is the appropriate service route.

Q5: What alarm conditions indicate the MSM082A1A has reached a fault state on a Panasonic MINAS driver?

Panasonic MINAS drivers display alphanumeric alarm codes on the front panel.

Common alarms related to the motor include: Err 16.0 (encoder communication alarm — check encoder cable and connections), Err 11.0 (overspeed — motor exceeded maximum speed setting), Err 18.0 (overload — motor operated at torque above continuous rating for too long; check for mechanical binding or undersized motor for the load), Err 13.0 (IPM overheat — driver output transistor overheated; check driver cooling and ambient temperature), and Err 14.0 (motor overheat thermostat alarm, if motor is equipped with thermal protector).

Alarm history is stored in the driver and can be reviewed through PANATERM software or the driver's parameter display to support root cause analysis.
